Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW

  • 1
  • 2
  • 3

Brand Name : Available for ODM

Model Number : DKT-2.15B-W

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1

Price : Contact Us

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 3-8 work days

Packaging Details : Carton packaging，1 units per carton

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Air conditioning uni

Electric Current Type : AC

After-sales Service Provided : Video technical support

Voltage : 380

Customized support : OEM, ODM, OBM

Mounting : FREE STANDING

Warranty : 1 Year

Product name : Ac Centrifugal Fan

Application : Exhaust Ventilation

Contact Now

Product Applications:

Double Inlet Centrifugal Fans are suitable for various-sized air handling units, fan coil units, central air conditioning systems, and purification equipment in industrial enterprises, hotels, and large shopping malls. They are characterized by their versatility, high efficiency, low noise, and large airflow. These fans convey non-flammable and non-corrosive gases within a temperature range of -20°C to 60°C, with dust and other solid content ≤ 100 mg/m³.

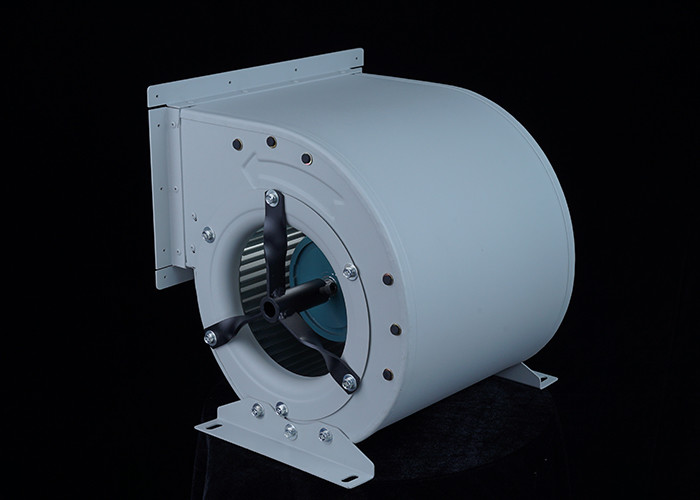

Fan Configuration: Features an external rotor motor, adjustable air discharge angle, available in single-phase or three-phase options, and compatible with air conditioning units.

Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW

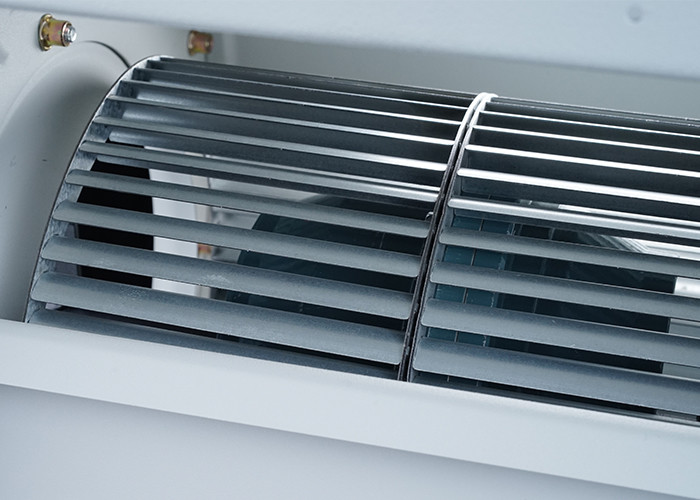

Multi-Wing Impeller: Constructed from thin plates with circular arcs riveted to the wheel cover, offering excellent aerodynamic performance.

Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW

Metal Housing: Made from high-quality cold-rolled steel plates that are mechanically interlocked and coated with a protective finish, offering resistance to corrosion, rust, and moisture.

Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW

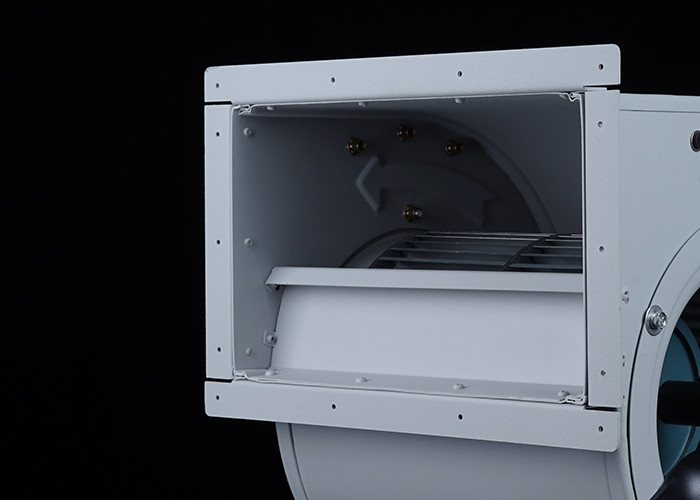

Air Inlet: Made from high-quality steel plates, stamped into shape, and installed on both sides of the fan. The cross-section parallel to the axis is curved.

Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW

External Rotor Motor: Equipped with a ball-bearing pure copper motor, featuring an IP54 protection rating. It is highly efficient, energy-saving, and has a longer service life.

Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW

Product Performance Specifications

Model DKT-2.15B-W Fan Type Centrifugal Fan
Rated Voltage 380V Frequency 50Hz
Rated Power 0.32KW Noise Level
RPM ( Revolutions Per Minute) 1400r/ min Rated Current 1.2A
No Item Units A B C D E F G H
1 Outlet Static Pressure Pa 0.000 49.125 98.313 149.188 197.375 235.938 246.750 290.063
2 Dynamic Pressure pa 256.154 226.969 195.699 163.276 130.600 101.166 91.755 25.194
3 Total Pressure pa 256.154 276.094 294.012 312.464 327.976 337.103 338.505 315.257
4 Airflow/ Air Volume m3/h 2950.854 2777.814 2579.376 2356.036 2107.246 1854.639 1766.365 925.667

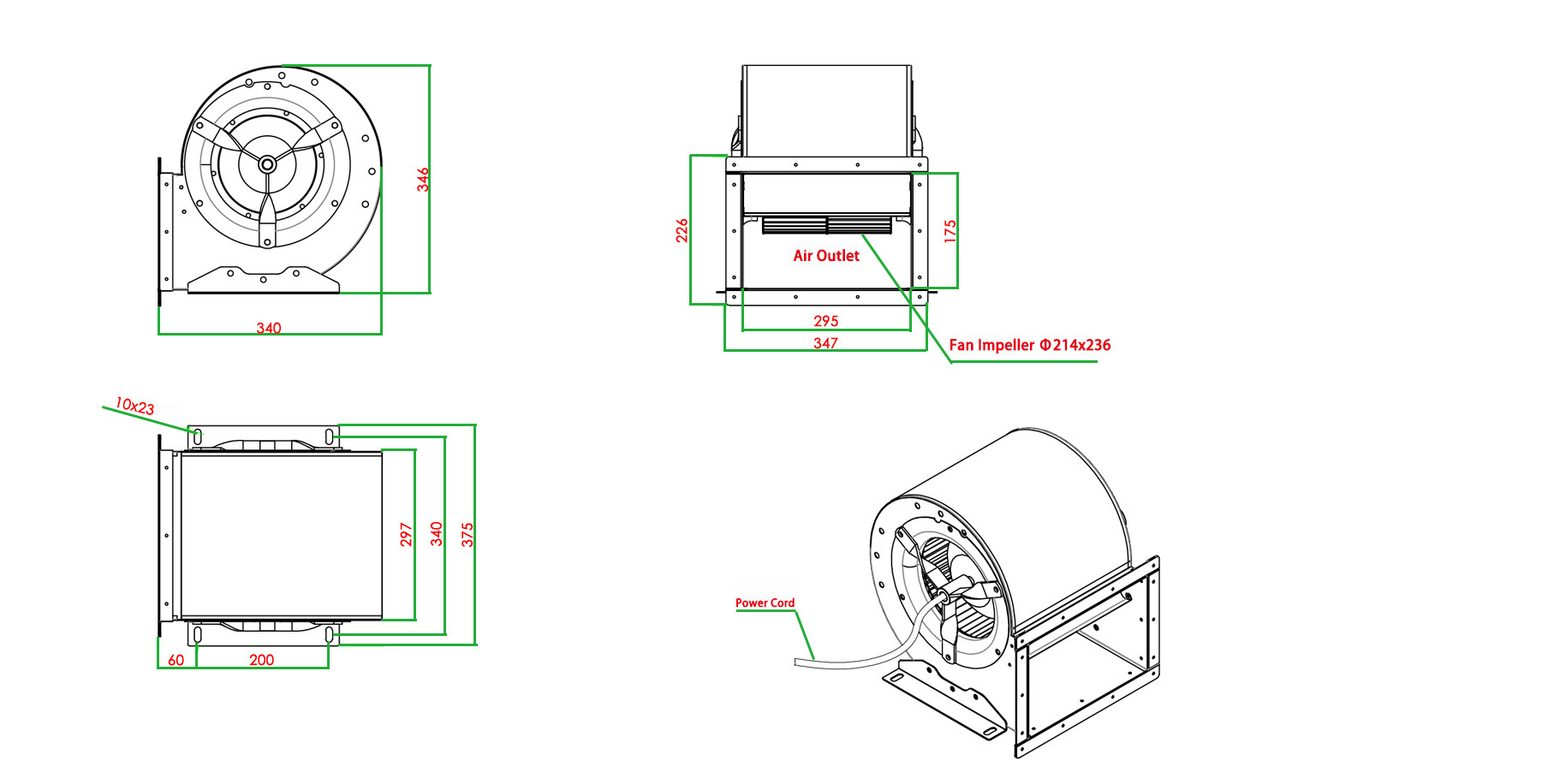

Product Dimensions

Adjustable External Rotor Double Inlet Centrifugal Fans Antirust 0.32KW
